Key Features
- Channels / Power: 7.2-channel, 100 W per channel (8 Ω, 20 Hz–20 kHz)
- Video Support: HDMI 2.1—8K/60 Hz, 4K/120 Hz, VRR, ALLM, HDR10+, Dolby Vision
- Surround Audio: Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X
- Calibration: YPAO room tuning with multi-point correction
- Wireless & Streaming: Wi‑Fi, Bluetooth, AirPlay 2, MusicCast, Spotify Connect
- Voice Control: Works with Alexa, Google Assistant, Siri
- Multi-Zone: Playback in a second zone via Zone 2 pre-outs
- Phono Input: Supports turntables for vinyl playback



HDR10+
HDR10+ signals not only dynamic range (the ratio of light to dark) of video content on a scene-by-scene basis, it also provides the scene characteristics between light and dark to maintain important detail for a more realistic viewing experience.
Enhanced Gaming Functionality
Enhance your favorite games with features that include Auto Low Latency Mode (ALLM) and Variable Refresh Rate (VRR).




4 K120 Ultra HD, 8 K60 B
Get future-ready with this 8K AV receiver with 7 HDMI inputs. 8 K60 B, 4 K120AB, and support for the latest HDMI standards.
Wi-Fi, Bluetooth, and AirPlay 2
Use Wi-Fi for MusicCast multi-room audio, Bluetooth to stream in or out to headphones, and AirPlay 2 to stream from iOS devices to your receiver.
Wireless Surround Speakers
Combine this AV receiver with a MusicCast 50 or two MusicCast 20 wireless rear speakers (optional) to create a 5.1-channel home theater.
YPAO R.S.C. with Multipoint
YPAO (Yamaha Parametric Room Acoustic Optimizer) measures up to 8 listening positions, allowing for a sweet spot large enough for the whole family.

Specifications
| Specifications | Details |
|---|---|
| Channels | 7.2 |
| Power Output | 100 W × 7 (8 Ω, 20 Hz–20 kHz, 0.06 % THD) |

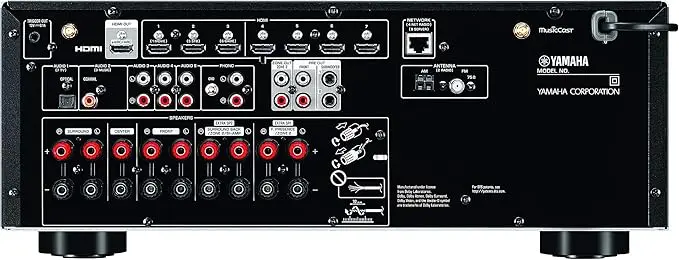

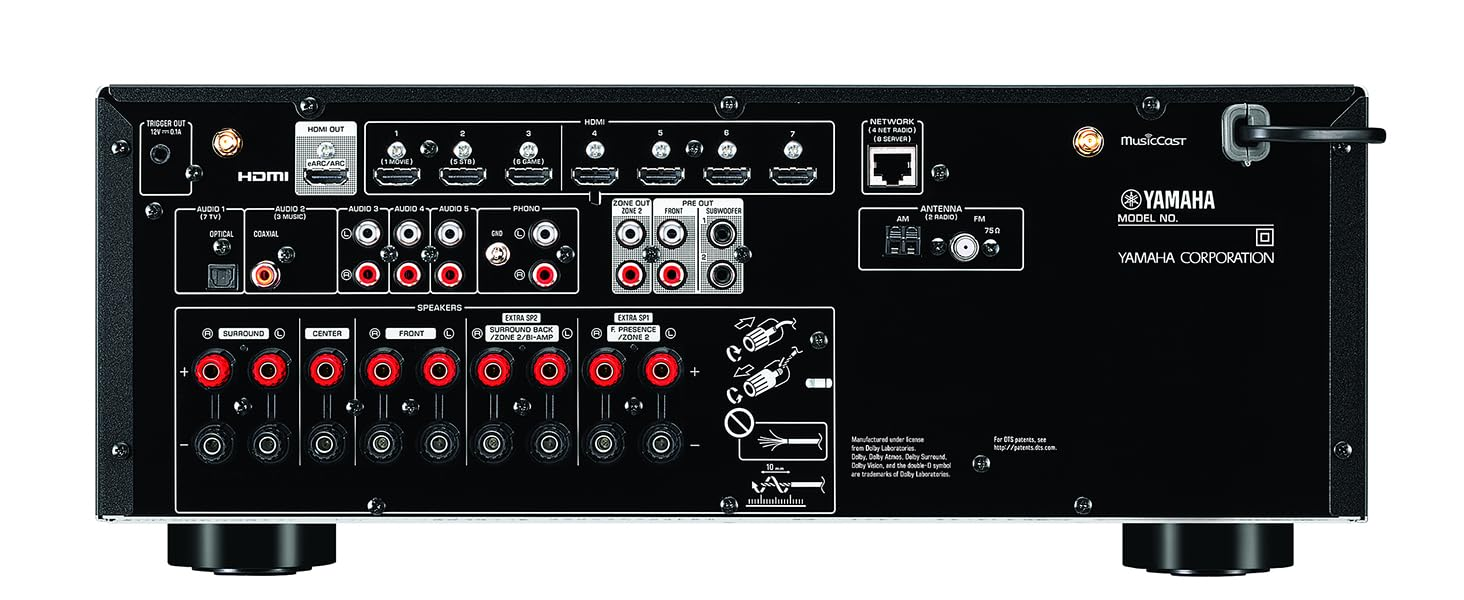

| HDMI I/O | 7× in / 1× out (all HDMI 2.1, HDCP 2.3) |
| Video Pass-through | 8K60, 4K120, VRR, ALLM, HDR10+/Dolby Vision |
| Audio Formats | Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD MA |
| Room Calibration | YPAO with multipoint and R.S.C. |
| Streaming & Wireless | Wi‑Fi, Bluetooth (SBC/AAC), AirPlay 2, MusicCast |
| Voice Assistants | Alexa, Google Assistant, Siri |
| Multi-Zone Support | Zone 2 pre-outs |
| Phono Input | Yes |
| Dimensions (W×H×D) | 43.4 × 17.3/24.4 × 37.8 cm (antenna down/up) |
| Weight | 9.8 kg |
| Technical Data | |
|---|---|
| Color | Black |
| Weight | 9.8 kg |
| Dimensions | 43.4 × 17.3/24.4 × 37.8 cm |
| Electronics | |
|---|---|
| Brand | Yamaha |
